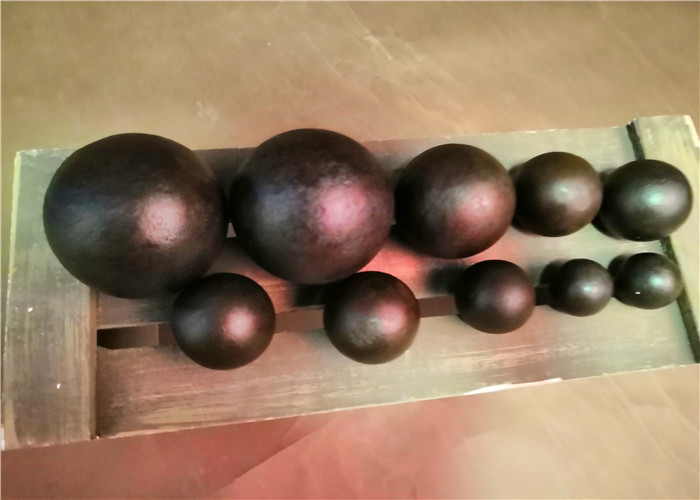

35mm Rolling Ball Hot Rolling Steel Balls Forged Grinding Steel Balls
1. grinding steel ball Application
① Mining ( Gold, copper, iron ore )
② Cement plant
③ Coal mill
④ Sag mill
⑤ Industry
⑥ All the ball mill or rods mill machine
2. Dragon Balls Main Product
Forged grinding ball
Hot Rolling Ball
Cast Iron Ball
Grinding Cylpebs
Grinding Rods
Liners
3. grinding steel ball Different Name in Different Place
Hot Rolling Ball
Rolled Ball
Forged Ball
Grinding Media Ball
Rolling Ball
4. grinding steel ball Classification
According to the different chemical elements , hot rolling balls can be divided into C45,60Mn,B2 and B3. At present, the above four materials are widely used all over the world, that’s the conventional materials, if there are special needs, can be customized.
① 45#
② 60Mn
③ B2
④ B3
5. grinding steel ball Manufacturing process
Hot rolling ball is making by hot rolling machine ,water quenching,double-layer insulating barrel and so on a series process.
6. grinding steel ball Detail Specifications
① Chemical Composition
| Material | Chemical Composition |
| C | Si | Mn | Cr | P | S | Ni | Cu |
| C45 | 0.42-0.5 | 0.17-0.37 | 0.5-0.8 | ≤0.25 | ≤0.035 | ≤0.035 | ≤0.25 | ≤0.25 |
| 60Mn | 0.55-0.65 | 0.17-0.37 | 0.7-1.0 | ≤0.25 | <0.04 | <0.04 | ≤0.3 | ≤0.25 |
| B2 | 0.72-0.85 | 0.17-0.37 | 0.7-1.0 | 0.4-0.6 | ≤0.025 | ≤0.025 | ≤0.02 | ≤0.02 |
| B3 | 0.58-0.66 | 1.3-1.9 | 0.65-0.8 | 0.7-0.9 | ≤0.025 | ≤0.025 | ≤0.02 | ≤0.02 |
② Hardness
| Size | C45 | 60Mn | B2 | B3 |
| 20mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 30mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 40mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 50mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 60mm | 55-58 | 58-62 | 60-64 | 62-65 |
| 70mm | 53-56 | 58-62 | 60-64 | 61-63 |
| 80mm | 53-56 | 58-62 | 59-63 | 60-65 |
| 90mm | 50-55 | 58-62 | 57-61 | 60-65 |
| 100mm | 48-52 | 57-61 | 56-60 | 60-65 |
| 110mm | 48-52 | 57-61 | 55-60 | 58-64 |
| 120mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 130mm | 48-52 | 57-61 | 55-60 | 56-63 |
| 140mm | 48-42 | 57-61 | 55-60 | 56-63 |
| 150mm | 48-52 | 57-61 | 55-60 | 56-63 |
③ Weight
| Size(mm) | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 | 130 | 140 | 150 |
| Weight(kg) | 0.033 | 0.111 | 0.261 | 0.512 | 0.883 | 1.402 | 2.092 | 2.98 | 1.087 | 5.44 | 7.062 | 9.008 | 11.25 | 13.83 |
④ Dragon balls specifications
| Diameter (mm) | Diameter Tolerance (mm) | Approx Weight of per ball(kg) | Average numbers per ton |
| 20 | ＋1,－0.5 | 0.033 | 30303 |
| 30 | ＋2,－1 | 0.11 | 9090 |
| 40 | ＋2,－1 | 0.261 | 3831 |
| 50 | ＋2,－1 | 0.512 | 1961 |
| 60 | ＋2,－1 | 0.883 | 1132 |
| 70 | ＋3,－1.5 | 1.402 | 713 |
| 80 | ＋3,－1.5 | 2.092 | 478 |
| 90 | ＋3,－1.5 | 2.98 | 335 |
| 100 | ＋3,－1.5 | 1.087 | 244 |
| 110 | ＋3,－1.5 | 5.44 | 183 |
| 120 | ＋3,－1.5 | 7.062 | 141 |
7. grinding steel ball Quality Control
① Factory test
Hot rolling balls test is an very important step. Real-time detection will be carried out in the production process. Balls produced in each shift will be sampled in large quantities and tested for size, hardness, chemical composition, drop test, core pulling and impact value to ensure the quality of steel balls.
② The third party test
According to the customer different demand,hot rolling balls can be tested by any third party.
8. Hot Rolling Ball Packing
Hot rolling balls are usually packed in container bags and steel drums, it can also be customized according to different customer needs.
grinding steel ball hot rolling balls
